Leírás és Paraméterek
Specifications
-
GPU

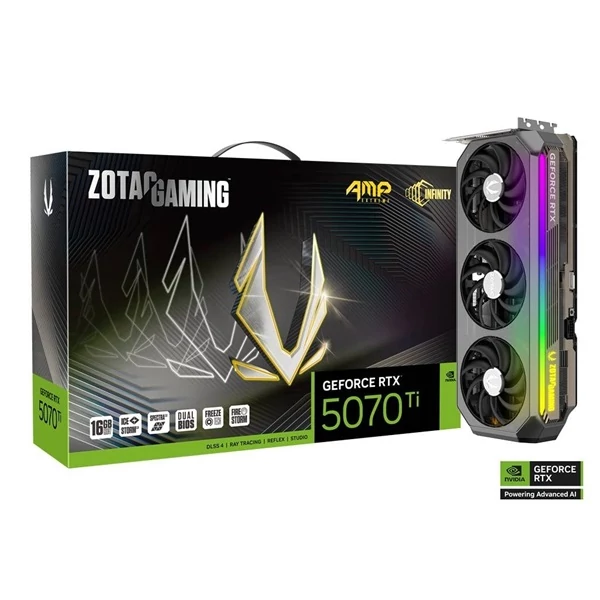

NVIDIA GeForce RTX 5070 Ti GPU
-
CUDA cores
8960
-
Video Memory
16GB GDDR7
-
Memory Bus
256-bit
-
Engine Clock
2512 MHz
-
Memory Clock
28 Gbps
-
PCI Express
PCI Express 5.0 x16
-
Display Outputs
3 x DisplayPort 2.1b with UHBR20
(up to 4K 480Hz or 8K 165Hz with DSC)
1 x HDMI® Connector
(Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification) -
HDCP Support
2.3
-
Multi Display Capability
Quad Display
-
Recommended Power Supply
750W
-
Power Consumption
300W *High power consumption, please carefully read your PSU manual before installation.
-
Power Input
1 x 12v-2x6 power input
-
DirectX
Microsoft DirectX® 12 Ultimate
-
OpenGL
4.6
-
Cooling
IceStorm 3.0
-
Slot Size
3.5
-
SLI
No
-
Supported OS
Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
-
Card Length
332.1mm x 137.5mm x 69.6mm / 13.1" x 5.4" x 2.7"
-
Accessories
User Manual
3 x 8-pin-to-16-pin cable
SPECTRA LINK cable
GPU Support Stand
| Chipset gyártó | nVidia |
| Chipset típusa | RTX5070Ti |
| Csatlakozófelület | PCI-e x16 |
| DirectX | 12 |
| Displayport | 3 |
| Gyártó | Zotac |
| HDMI | 1 |
| Hűtés típusa | Aktív |
| Kivitel | dobozos |
| Low profile | Nincs |
| Magórajel | 2512 |
| Memória. | 16 |
| Memória órajel | 28000 |
| Memória sávszélesség | 256 Bit |
| Memória típusa | GDDR7 |
| OpenGL | 4.6 |
| SLI/CrossFire támogatás | Nincs |
