Leírás és Paraméterek

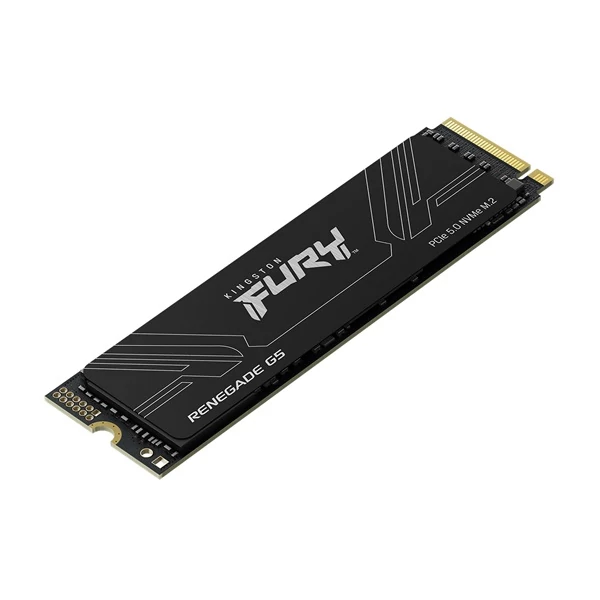

| Form factor | M.2 2280 |
| Interface | PCIe 5.0 x4 NVMe |
| Capacities2 | 1,024GB, 2,048GB, 4,096GB, 8,192GB |
| Controller | SM2508 |
| NAND | 3D TLC |
| DRAM cache | Yes |
| DirectStorage supported | Yes |
| Sequential read/write1 | 1,024GB – up to 14,200/11,000MB/s 2,048GB – up to 14,700/14,000MB/s 4,096GB – 8,192GB – up to 14,800/14,000MB/s |
| Random 4K read/write1 | 1024GB - up to 2,200,000/2,150,000 IOPS 2048GB – 8192GB - up to 2,200,000/2,200,000 IOPS |
| Endurance (total bytes written)3 | 1024GB – 1.0PB 2,048GB – 2.0PB 4096GB – 4.0PB 8,192GB – 8.0PB |
| Power consumption4 | 1024GB – 0.27W avg / 6.6W @ 14.2G / 6.6W (MAX) 2048GB – 0.27W avg / 7.0W @ 14.7G / 7.0W (MAX) 4096GB – 0.27W avg / 7.1W @ 14.8G / 9.5W (MAX) 8192GB – 0.27W avg / 7.5W @ 14.8G / 9.5W (MAX) |
| Storage temperature | -40°C~85°C |
| Operating temperature | 0°C~70°C |
| Dimensions | 1024GB - 4096GB - 80mm x 22mm x 2.3mm 8192GB - 80mm x 22mm x 3.65mm |
| Weight | 1024GB – 7.3g 2048GB – 4096GB – 7.7g 8192 - 9.2g |
| Vibration operating | 2.17G peak (7-800Hz) |
| Vibration non-operating | 20G peak (20-1000Hz) |
| MTBF | 2,000,000 hours |
| Warranty/Support5 | Limited 5-year warranty with free technical support |
| Csatoló | PCI-e 5.0 |
| Gyártó | KINGSTON |
| Külső/Belső | Belső |
| Méret | M.2 PCI-E |
| Szekvenciális Írás | 14000 |
| Szekvenciális Olvasás | 14800 |
| Tárolókapacitás | 8192 |
