Leírás és Paraméterek
-
Model

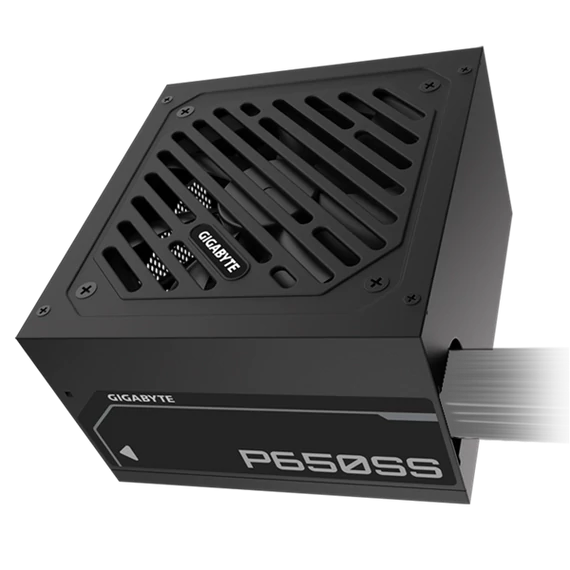

GP-P650SS
-
Type
Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
-
PFC
Active PFC (>0.9 typical)
-
Input Voltage
155-240 Vac
-
Input Current
6.3A
-
Input Frequency
50-60 Hz
-
Output Capacity
650W
-
Dimension
150 x 140 x 86 mm
-
Fan Type
120mm Fluid Dynamic Bearing (FDB) fan
-
80 PLUS
Silver
-
Efficiency
90% at typical load (230V EU)
-
MTBF
>100,000 hours
-
Protection
OVP/OPP/SCP/UVP/OCP/OTP
-
Power Good Signal
100-150ms
-
Hold Up Time
>16ms
-
Cable Type
Flat, All black
-
Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1
PCI-e 6+2 Pin x 2 : 600mm*2
SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1
SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
| Csatlakozók | 1x20+4, 1x4+4, 2x6+2, 5xSatax, 3xMolex |
| Gyártó | GIGABYTE |
| Hűtés típusa | Low Noise (12cm) |
| Teljesítmény | 650 |
