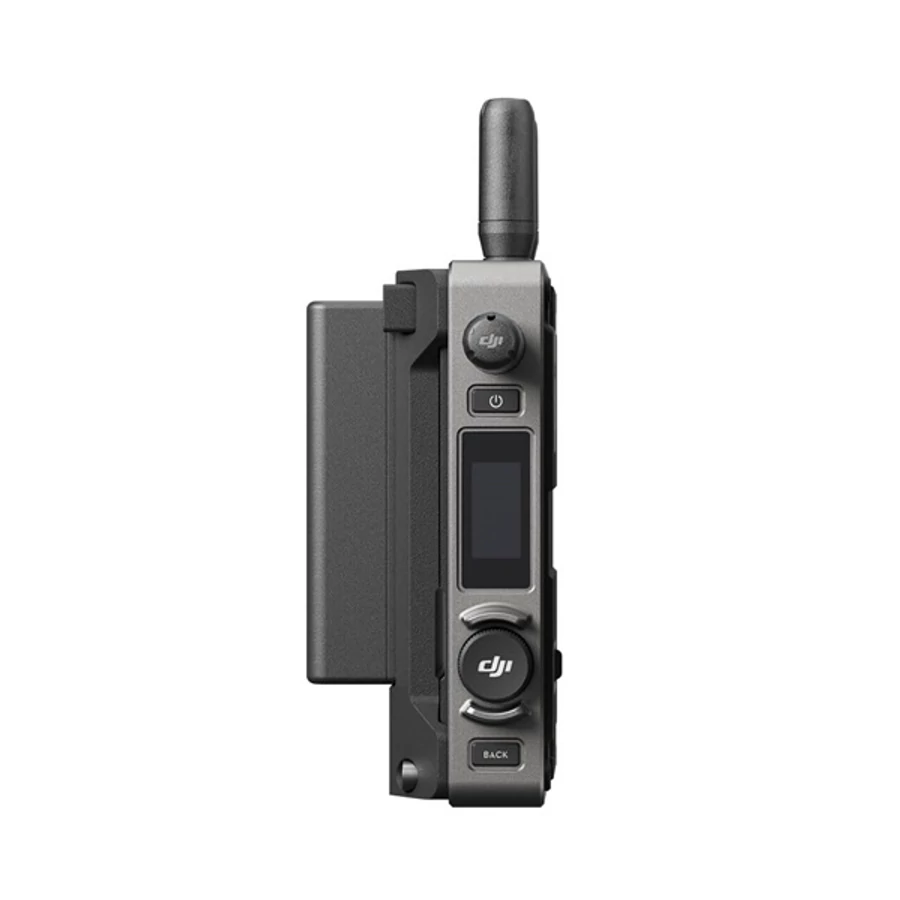

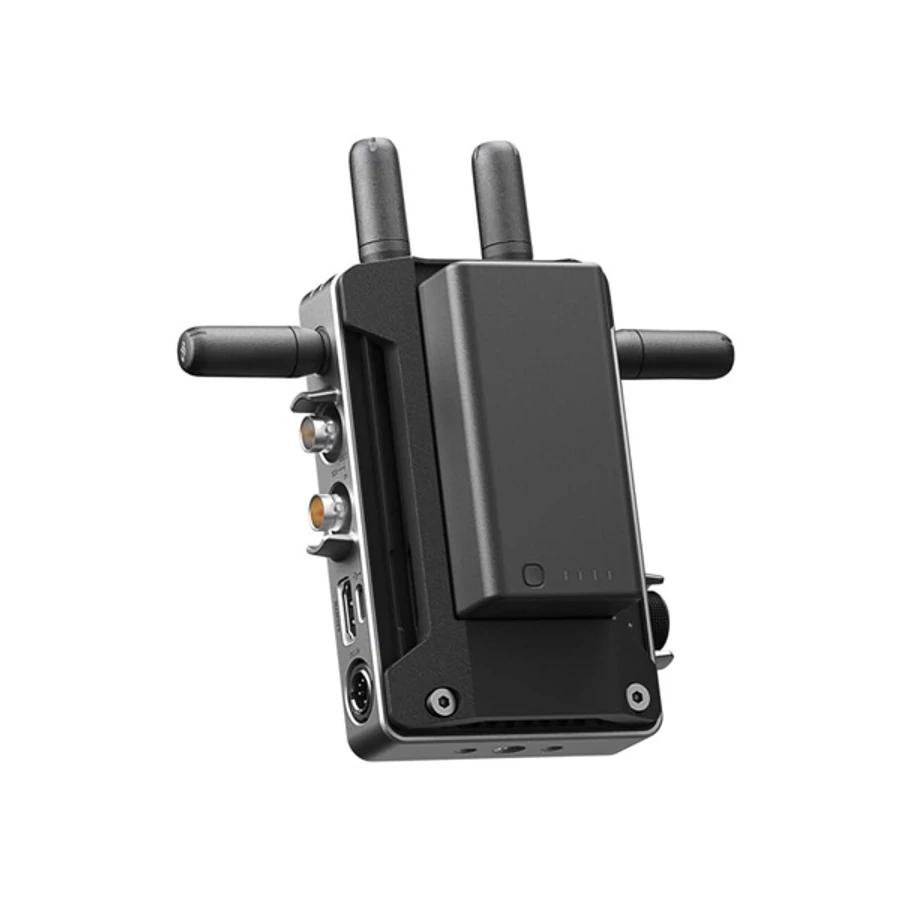

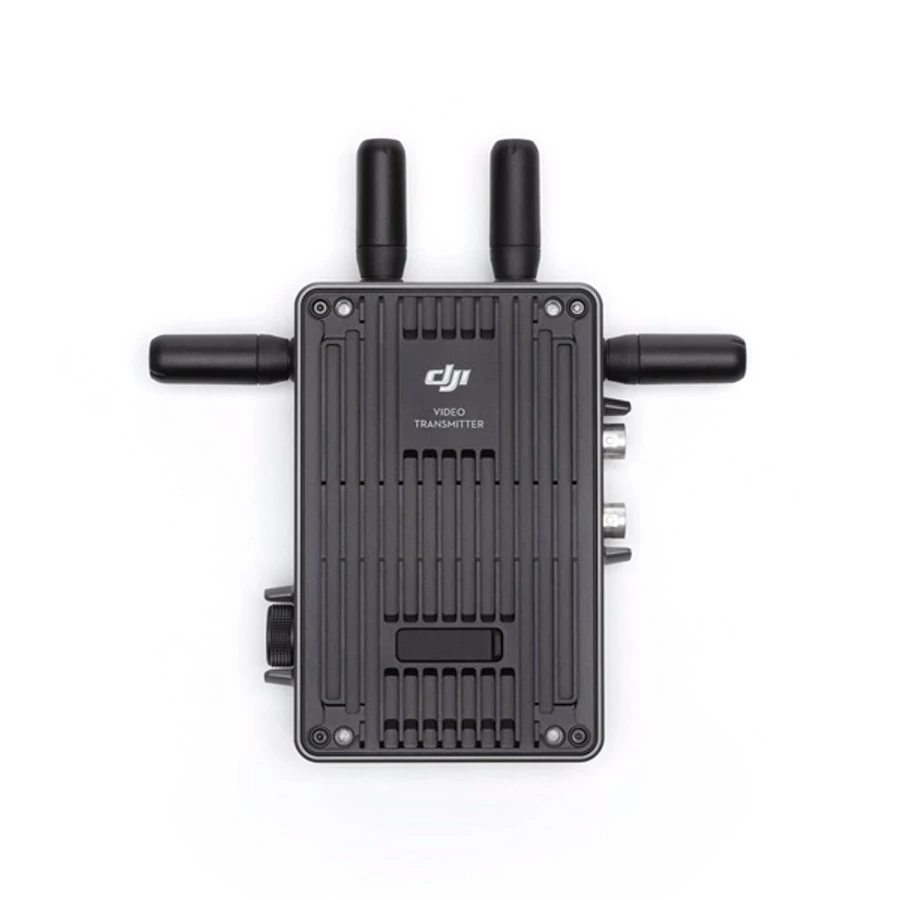

| DJI Video Transmitter |
| |
| |

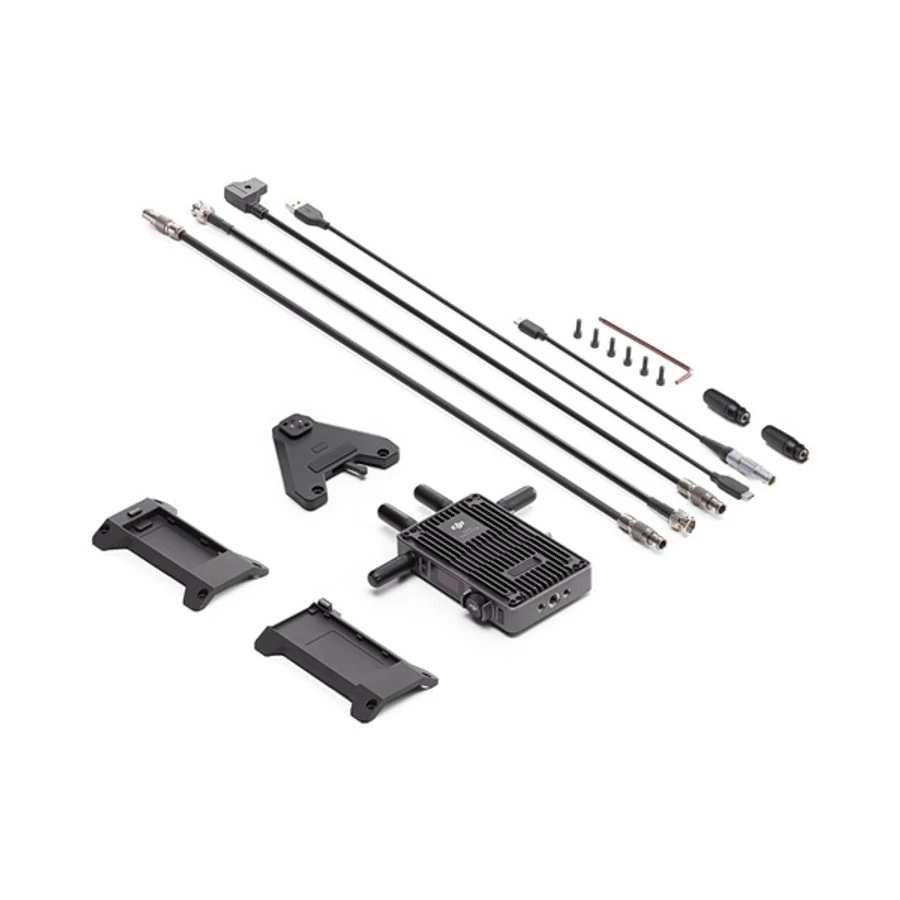

| In the Box |
| |
- Video Transmitter × 1
-
WB37 Battery Adapter (TX) × 1
-
NP-F Battery Adapter (TX) × 1
-
Ronin Video Transmission Antenna × 2
-
USB-C Cable × 1
-
SDI Cable × 1
-
DC Power Cable × 1
-
DC to P-TAP Power Cable × 1
-
DJI Transmission USB-C Power Cable × 1
-
RS Gimbal Mounting Plate × 1
-
Installation Toolkit × 1
.
|
| |
| |
| Specs |
| |
| Specifications |
| |
- Weight:
Video Transmitter Weight: Approx. 350 g / 0.77 lbs (excluding antennas)
High-Bright Remote Monitor Weight: Approx. 727 g / 1.6 lbs (excluding antennas)
-
Dimensions:
Video Transmitter: 127×87×26 mm (L×W×H, excluding antennas)
High-Bright Remote Monitor: 213×135×51 mm (L×W×H, excluding antennas)
-
Operating Frequency:
Non DFS Frequency Band:
2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
DFS Frequency Band:
5.250-5.350 GHz
5.470-5.600 GHz
5.650-5.725 GHz"
-
Transmitter Power (EIRP):
2.4000-2.4835 GHz:
<33 dBm (FCC)
<20 dBm (SRRC/CE/MIC)
5.150-5.250 GHz:
<23 dBm (FCC/SRRC/MIC)
5.250-5.350 GHz:
<30 dBm (FCC)
<23 dBm (SRRC/MIC)
5.470-5.600 GHz, 5.650-5.725 GHz:
<30 dBm (FCC)
<23 dBm (CE/MIC)
5.725-5.850 GHz:
<33 dBm (FCC/SRRC)
<14 dBm (CE)
-
Max Bandwidth: 40 MHz
-
Max Bitrate: 40 Mbps
-
Power Consumption: 11 W
-
Power Supply Voltage: 6 to 18 V
-
Output Voltage: Power Output Port: 6 to 18 V
-
Operating Time:
Video Transmitter: 3 hours 40 minutes [1]
High-Bright Remote Monitor: 2 hours [1]
-
Input Video Format:
3G SDI: YCbCr 4:2:2 10-bit
HDMI RGB 4:4:4
1080p: 24/25/30/50/60fps
1080i: 50/60fps
720p: 50/60fps
-
Output Video Format:
3G SDI: YCbCr 4:2:2 10-bit
1080p: 24/25/30/50/60fps
1080i: 50/60fps
720p: 50/60fps
-
Input Audio Format: SDI embedded, HDMI embedded
-
Output Audio Format: PCM
-
Video Transmission System: O3 Pro
-
Video Transmission Latency:
68 ms [2]
100 ms [3]
-
Video Coding Format: H.264
-
Max Transmission Distance:
6 km (FCC) [4]
4 km (CE/SRRC/MIC) [4]
-
Operating Temperature: -10° to 45° C (14° to 113° F)
-
Mirror Control Mode Supported Camera Models: ZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/A6600/A6400 and all Sony cameras that support BRAVIA (HDMI control).
.
|
| |
| |
| Other |
| |
| Notes |
| |
1. Measured at room temperature (25° C/77° F) with a fully charged WB37 battery.
2. Measured when shooting 1080p/60fps video.
3. Measured when shooting 1080p/24fps video.
4. In open environments free of obstructions or interference. |
| |
