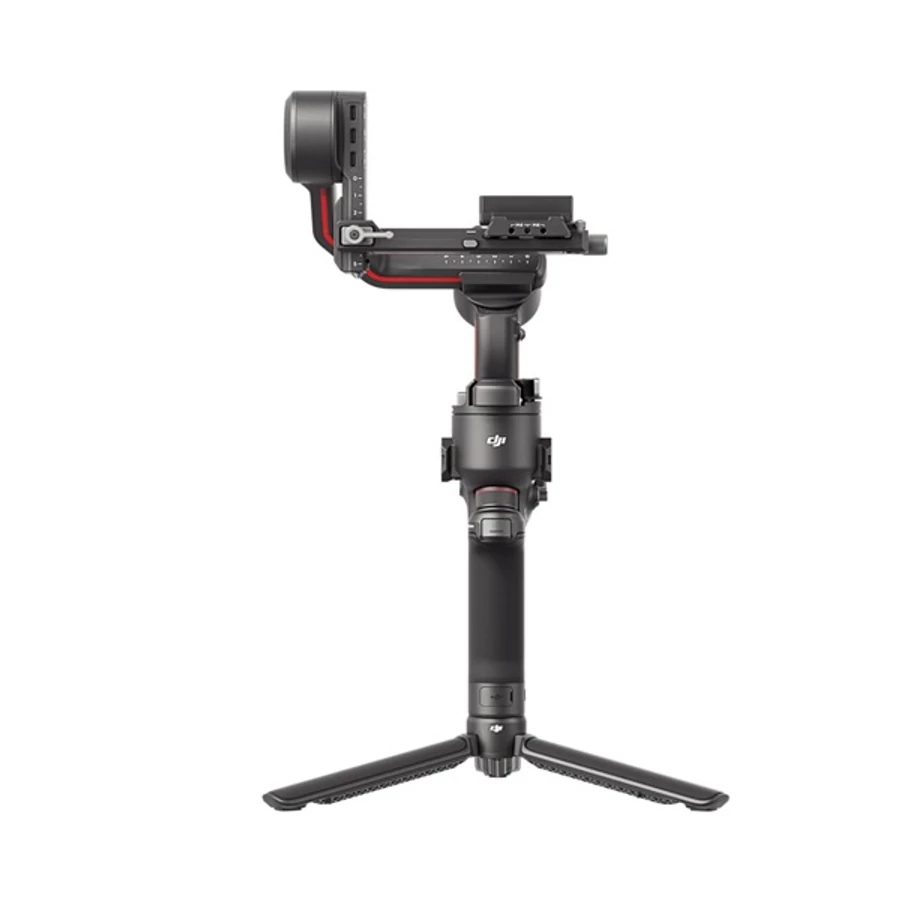

| DJI RS 3 |
| |
| |

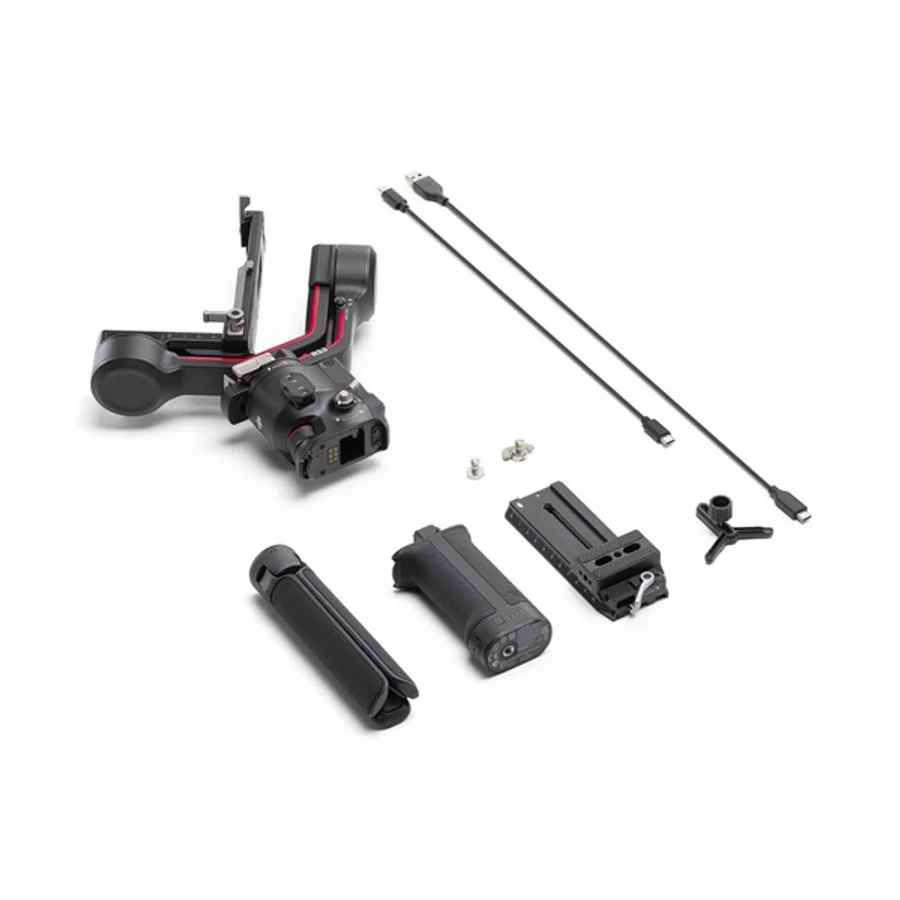

| In the Box |
| |
- Gimbal × 1
-
BG21 Grip × 1
-
Lens-Fastening Support × 1
-
Extended Grip/Tripod (Plastic) × 1
-
Quick-Release Plate (Arca-Swiss/Manfrotto) × 1
-
Multi-Camera Control Cable (USB-C, 30 cm) × 1
-
Screw Kit × 1
-
USB-C Charging Cable (40 cm) × 1
.
|
| |
| |
| Specs |
| |
| Peripheral |
| |
- Accessory Port:
NATO Ports
1/4"-20 Mounting Hole
Cold Shoe
Video Transmission/Focus Motor Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)
-
Battery:
Model: BHX711-3000-7.2V
Type: 2S
Capacity: 3000 mAh
Energy: 21 Wh
Max. Runtime: 12 hours [1]
Charging Time: Approx. 2.5 hours when using 18W quick charging (supports PD protocol)
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
-
Connections:
Bluetooth 5.0
Charging Port (USB-C)
-
Ronin App Requirements:
iOS 11.0 or above
Android 7.0 or above
-
Languages Supported by the Touchscreen: English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
.
|
| |
| |
| Working Performance |
| |
- Tested Payload: 3 kg (6.6 lbs)
-
Maximum Controlled Rotation Speed:
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
-
Mechanical Range:
Pan axis: 360° continuous rotation
Roll axis: -95° to +240°
Tilt axis: -112° to +214°
.
|
| |
| |
| Mechanical & Electrical Properties |
| |
- Operating Frequency: 2.400-2.484 GHz
-
Bluetooth Transmitter Power: <8 dBm
-
Operating Temperature: -20° to 45° C (-4° to 113° F)
-
Weight:
Gimbal: Approx. 990 g (2.18 lbs)
Grip: Approx. 200 g (0.44 lbs)
Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs)
Upper and Lower Quick-Release Plates: Approx. 107 g (0.23 lbs)
-
Dimensions:
Folded: 254×230×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
Unfolded: 364×187×170 mm (L×W×H, height includes the grip and excludes the Extended Grip/Tripod)
.
|
| |
| |
| DJI Ronin Image Transmitter |
| |
- Connections:
Power/Communication Port (USB-C)
HDMI Port (Mini HDMI)
RSS Camera Control Port (USB-C)
-
Expansion Port: Cold Shoe
-
Operating Frequency:
2.400-2.484 GHz
5.725-5.850 GHz
-
Weight: 126 g (0.27 lbs)
-
Dimensions: 82×63×24 mm (L×W×H)
-
Transmitter Power (EIRP):
2.400-2.484 GHz:
<25 dBm (FCC)
<20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
<25 dBm (FCC/SRRC)
<14 dBm (CE)
-
Battery:
Capacity: 2970 mAh
Compatible Charger: 5V/2A
Charging Time: Approx. 2.5 hours
Max Battery Life: Approx. 3.5 hours
-
Transmission Range:
200 m (SRRC/FCC) [2]
100 m (CE) [2]
-
Latency: 60 ms
-
Operating Current/Voltage: 900 mA, 3.7V
-
Operating Temperature: 0° to 45° C (32° to 113° F)
.
|
| |
| |
| Notes |
| |
1. Measured with the equipment in a level and stationary state, the gimbal balanced, three axes in an active state, and the battery only powering the gimbal.
2. In open environments free of obstructions or interference. |
| |
