Leírás és Paraméterek

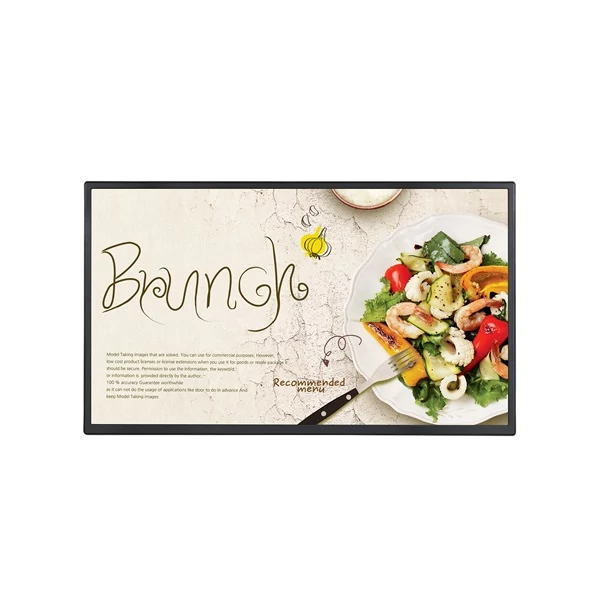

| 32SM5J-B |
| Full HD Standard Signage |
|
|
| Tech Spec |
|
Panel
|
|
|
Screen Size
|
32"
|
| Panel Technology
|
IPS
|
| Native Resolution
|
1,920 X 1,080 (FHD)
|
| Brightness (Typ.)
|
400 nit
|
| Contrast Ratio
|
1,100 : 1
|
| Dynamic CR
|
1,000,000 : 1
|
| Viewing Angle (H x V)
|
178 × 178
|
| Response Time
|
10 ms (G to G)
|
| Surface Treatment (Haze)
|
1%
|
| Operation Hours (Hours / Days)
|
24/7
|
| Orientation
|
Portrait / Landscape
|
|
Mechanical Specification
|
|
|
Bezel Color
|
Black
|
| Bezel Width
|
13 mm (T/R/L), 18 mm (B)
|
| Weight (Head)
|
5.7 kg
|
| Weight (Head+Stand)
|
6.5 kg
|
| Monitor Dimensions (W × H × D)
|
729.4 mm × 428.9 mm × 55.5 mm
|
| Monitor Dimensions with Stand (W × H × D)
|
729.4 mm × 481 mm × 154.2 mm
|
| VESA™ Standard Mount Interface
|
200 × 200 mm
|
|
Feature
|
|
|
Key Feature
|
Internal Memory 8 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Local Key Operation, webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC (Compatibility may differ by equipment), SI Sever Setting, webRTC, Pro:Idiom
|
|
Connectivity
|
|
|
Input
|
HDMI (3, HDCP 2.2), USB 2.0 ( Type A)
|
| Output
|
Audio Out (Off / Fixed / Variable)
|
| External Control
|
RS-232C In/Out (Phone-jack Type), RJ45 In (LAN), IR In (Phone-jack Type)
|
|
Environment Conditions
|
|
|
Operation Temperature
|
0°C to 40°C
|
| Operation Humidity
|
10% to 80%
|
|
Power
|
|
|
Power Supply
|
AC 100-240 V~, 50/60 Hz
|
| Power Type
|
Built-In Power
|
|
Power Consumption
|
|
|
Typ./Max.
|
55 W / 75 W
|
| BTU (British Thermal Unit)
|
187.67 BTU/Hr (Typ.), 255.911 BTU/Hr (Max.)
|
|
Certification
|
|
|
Safety
|
CB / NRTL
|
| EMC
|
FCC Class “A” / CE
|
| ErP
|
No
|
|
Software Compatibility
|
|
|
SuperSign CMS
|
Yes
|
| SuperSign Control / Control+
|
Yes
|
| SuperSign WB
|
Yes
|
| SuperSign Media Editor
|
Yes
|
| LG ConnectedCare
|
Yes
|
| Promota
|
Yes (Not available for Europe/CIS Region)
|
|
Sound
|
|
|
Speaker
|
Yes (10 W × 2 EA)
|
|
Accessory
|
|
|
Basic
|
Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS-232C Gender
|
| Optional
|
Stand (ST-322T), Wall Bracket (LSW230B), VESA Adapter (AM-B220S)
|
| Fali rögzítés | 200x200mm VESA falitartó-támogatás |
| Fejhallgató kimenet | Van |
| Felbontás | 1920 x 1080 (FHD1080) 16:9 |
| Fényerő | 400 |
| Gyártó | LG |
| Hangszóró | Van |
| HDMI | Van |
| Képátló | 32 |
| Kontrasztarány | 1100 |
| Panel típus | IPS |
| Soros port | Van |
| Üzemidő | 24/7 |
| USB | Van |
