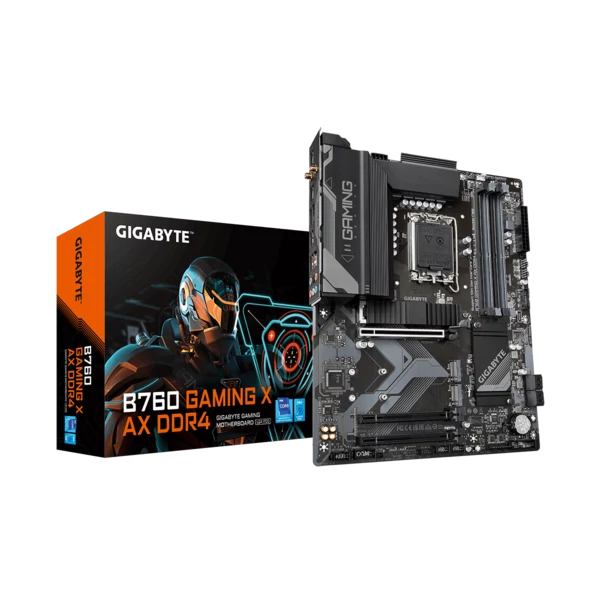

GIGABYTE Alaplap S1700 B760 GAMING X AX DDR4 INTEL B760, ATX
Ár:
72.812 Ft
Menny.:db
Kosárba

GIGABYTE Alaplap S1700 B760 GAMING X AX DDR4 INTEL B760, ATX

Ár:
72.812 Ft
Menny.:db
Kosárba
Gyártó: Gigabyte
Elérhetőség: Raktáron
Várható szállítás: 2024. október 22.
Szállítási díj: 1.763 Ft
Kívánságlistára teszem
Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be Cetelem Online Áruhitelt.

Leírás és Paraméterek

  • CPU
    1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® B760 Express Chipset
  • Memory
    1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
    2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version and HDCP 2.3.
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    AMD Wi-Fi 6E RZ608 (MT7921K)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.2
    3. Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots
    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
  • Storage Interface
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
    2. 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB
    Chipset:
    1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    3. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    4. 1 x USB 2.0/1.1 port on the back panel
    Chipset+2 USB 2.0 Hubs:
    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x CPU fan/water cooling pump header
    5. 3 x system fan headers
    6. 1 x system fan/water cooling pump header
    7. 2 x addressable LED strip headers
    8. 2 x RGB LED strip headers
    9. 3 x M.2 Socket 3 connectors
    10. 4 x SATA 6Gb/s connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x S/PDIF Out header
    14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
    15. 1 x USB 3.2 Gen 1 header
    16. 2 x USB 2.0/1.1 headers
    17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    18. 1 x serial port header
    19. 1 x Q-Flash Plus button
    20. 1 x reset button
    21. 1 x reset jumper
    22. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 1 x USB 3.2 Gen 2 Type-A port (red)
    2. 2 x USB 3.2 Gen 1 ports
    3. 5 x USB 2.0/1.1 ports
    4. 2 x SMA antenna connectors (2T2R)
    5. 1 x DisplayPort
    6. 1 x HDMI port
    7. 1 x RJ-45 port
    8. 6 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Audio 7.1 HD Chipset gyártó Intel D-Sub Nincs Display Port Van DVI Nincs Foglalat típusa S1700 Form Factor ATX Grafikus foglalat 3 x PCI-Ex16 Gyártó GIGABYTE HDMI Van Kivitel dobozos LAN1 100/1000/2500 Mb/s M.2 foglalat Van Max memória 128 Memória foglalatok száma 4 Memória órajel 3200 Memória típus DDR4 Párhuzamos port Nincs Quad Channel Nincs Raid Igen SATA III 4 Soros port Nincs Thunderbolt Nincs USB 2.0 9 USB 3.1 6 VGA integrált Nincs Wireless Van
