| DJI RSC 2 |
| |
| |

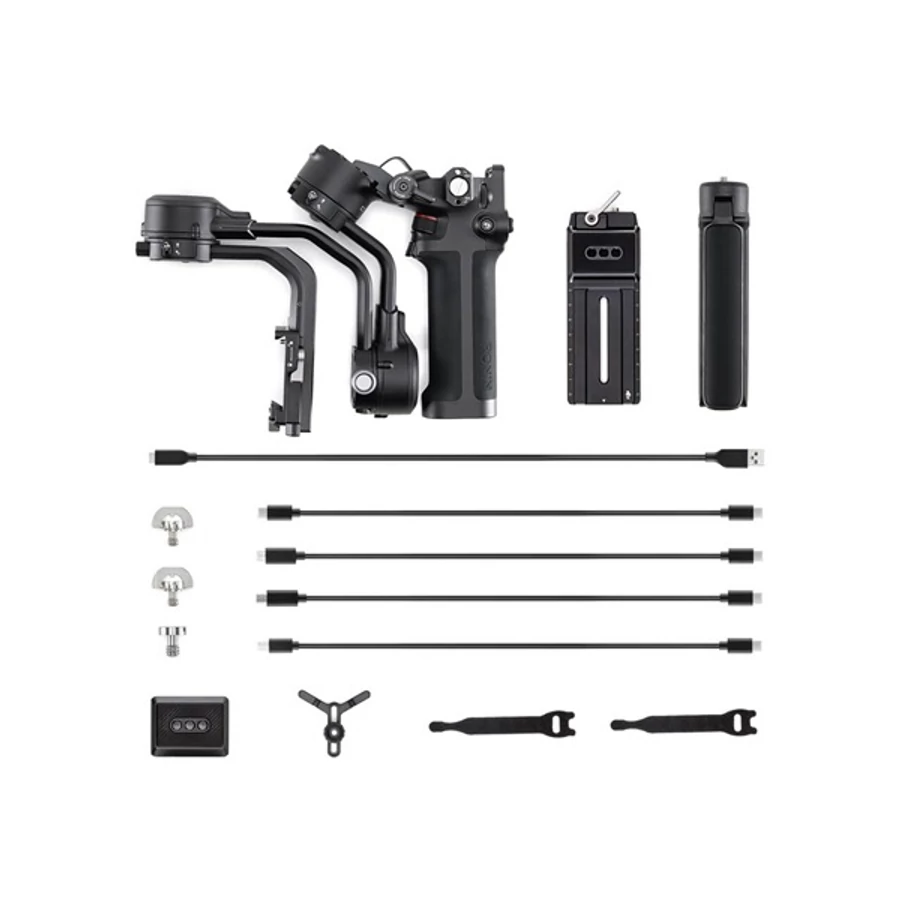

| In the Box |
| |
- Gimbal (Built-In Battery) × 1
-
USB-C Charging Cable (40 cm) × 1
-
Lens Support × 1
-
Multi-Camera Control Cable (USB-C, 30 cm) × 1
-
Multi-Camera Control Cable (Sony Multi, 30 cm) × 1
-
Multi-Camera Control Cable (Micro-USB, 30 cm) × 1
-
Multi-Camera Control Cable (Mini-USB, 30 cm) × 1
-
Hook-and-Loop Strap × 2
-
D-Ring Camera Mounting Screw 1/4"-20 × 2
-
Screw 1/4"-20 × 1
-
Quick-Release Plate (Arca-Swiss/Manfrotto) × 1
-
Camera Riser × 1
-
Extended Grip/Tripod (Plastic) × 1
.
|
| |
| |
| Specs |
| |
| Peripheral |
| |
- Accessory Connections:
NATO port
M4 Mounting Hole
1/4”-20 Mounting Hole
Cold Shoe Mount
Video Transmission/ Follow Focus Motor Port (USB-C)
RSS Camera Control Port (USB-C)
Follow Focus Motor Port (USB-C)
-
Battery:
Model: RB2-3400mAh -7.2 V
Type: 18650 2S
Capacity: 3400mAh
Energy: 24.48 Wh
Max Battery Life: 14 hours
Charging time: Approx. 2 hours to fully charge with 18W fast charging (PD and QC 2.0 fast charging protocols are supported)
Charging temperature: 5° to 40° C (41° to 104° F)
-
Connections: Bluetooth 5.0; USB-C
-
Ronin App Requirements:
iOS 11 or above;
Android 7.0 or above
.
|
| |
| |
| Working Performance |
| |
- Load Weight (Reference Value): 3.0 kg (Handheld)
-
Maximum Controlled Rotation Speed:
Pan axis: 360°/s
Tilt axis: 360°/s
Roll axis: 360°/s
-
Mechanical Range:
Pan axis: 360° continuous rotation
Roll axis: -240° to +95°
Tilt axis: -112° to +214°
.
|
| |
| |
| Mechanical & Electrical Characteristics |
| |
- Operating Frequency: 2.4000-2.4835 GHz
-
Transmission Power: < 8 dBm
-
Operating Temperature: -20° to 45° C (-4° to 113° F)
-
Weight:
Gimbal: Approx. 1216 g (including the battery and excluding Quick-Release Plate)
Quick-Release Plate (Upper/Lower) Approx. 102 g
Extended Grip/Tripod (Metal): Approx. 226 g
Extended Grip/Tripod (Plastic): Approx. 160 g
-
Gimbal Dimensions:
Folded: 260×210×75 mm (including the handle)
Unfolded: 400×185×175 mm (including the handle and without the Extended Grip/Tripod)
.
|
| |
| |
