| DJI RS 2 Pro Combo |
| |
| |

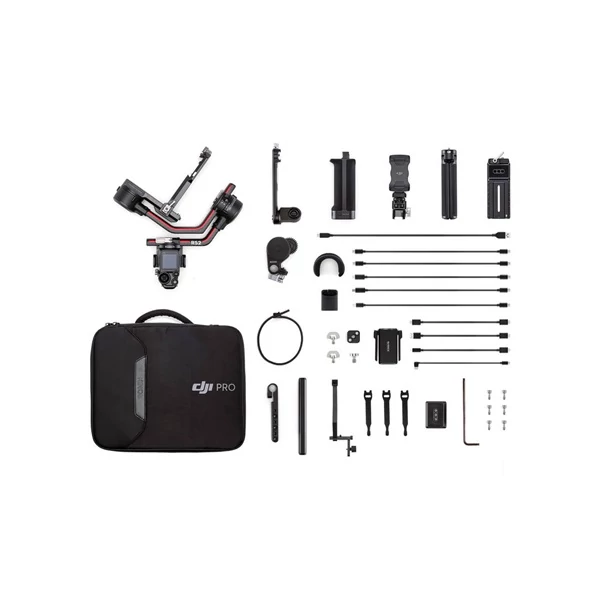

| In the Box |
| |
- Gimbal × 1
-
BG30 Grip × 1
-
USB-C Charging Cable (40 cm) × 1
-
Lens-Fastening Strap × 1ű
-
Extended Grip/Tripod (Metal) × 1
-
Quick-Release Plate (Arca-Swiss/Manfrotto) × 1
-
Briefcase Handle × 1
-
Camera Riser × 1
-
Carrying Case × 1
-
Multi-Camera Control Cable (USB-C, 30 cm) × 2
-
Multi-Camera Control Cable (Sony Multi, 30 cm) × 1
-
Multi-Camera Control Cable (Micro-USB, 30 cm) × 1
-
Multi-Camera Control Cable (Mini-USB, 30 cm) × 1
-
Hook-and-Loop Strap × 3
-
D-Ring Camera Mounting Screw 1/4"-20 × 2
-
RSA/NATO Port Cover × 1
-
Pan Axis Sleeve × 1
-
Screw 1/4"-20 × 1
-
Phone Holder × 1
-
Focus Motor × 1
-
Focus Motor Rod Mount Kit × 1
-
Focus Gear Strip × 1
-
Image Transmitter × 1
-
Cold Shoe to 1/4''-20 Adapter × 1
-
USB-C Power Cable (20 cm) × 1
-
Mini-HDMI to HDMI Cable (20 cm) × 1
-
Mini-HDMI to Mini-HDMI Cable (20 cm) × 1
-
Mini-HDMI to Micro-HDMI Cable (20 cm) × 1
-
M4 Screw (10 mm) × 6
-
Allen Wrench (3 mm) × 1
.
|
| |
| |
| Specs |
| |
| Peripheral |
| |
- Accessory Connections:
RSA/NATO ports
1/4"-20 mounting hole
Cold shoe mount
Video transmission/follow focus motor port (USB-C)
RSS camera control port (USB-C)
Follow focus motor port (USB-C)
-
Battery:
Model: BG30-1950mAh-15.4V
Type: LiPo 4S
Capacity: 1950 mAh
Power: 30.03 Wh
Max. Battery Life: 12 h
Charging Time: 1.5 h (24W USB adapter using the QC 2.0 or PD protocol)
Suggested Charging Temperature: 5°C to 40°C
-
Connections: Bluetooth 5.0; USB-C
-
Mobile Assistant Software Requirements:
iOS 11 or above;
Android 7.0 or above
-
Languages supported by the touchscreen: English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
.
|
| |
| |
| Working Performance |
| |
- Tested Payload: 4.5 kg (10.0 lbs)
-
Maximum Controlled Rotation Speed:
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
-
Mechanical Endpoint Range:
Pan axis control: 360° continuous rotation
Roll axis control: -95° to +240°
Tilt axis control: -112° to +214°
.
|
| |
| |
| Mechanical & Electrical Characteristics |
| |
- Operating Frequency: 2.4000 GHz - 2.4835 GHz
-
Transmission Power: <8 dBm
-
Operating Temperature: -20° to 45° C (-4° to 113° F)
-
Weight:
Gimbal: Approx. 960 g (2.12 lbs) (excluding the Quick-Release Plates and Camera Mounting Plate)
Camera Mounting Plate: Approx. 150 g (0.33 lbs)
BG30 Grip: Approx. 265 g (0.58 lbs)
Extended Grip/Tripod: Approx. 226 g (0.50 lbs)
Upper and Lower Quick-Release Plates: Approx. 105 g (0.23 lbs)
-
Gimbal Dimensions:
Folded: 260×265×70 mm (excluding the BG30 grip)
Unfolded: 410×260×195 mm (including the BG30 grip, excluding the extended grip/tripod)
.
|
| |
| |
| Notes |
| |
| The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. |
| |
|
|
| |
